Microspheres
Microspheres

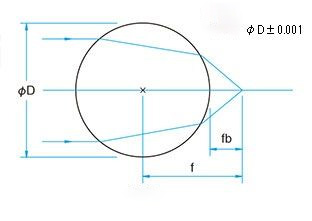

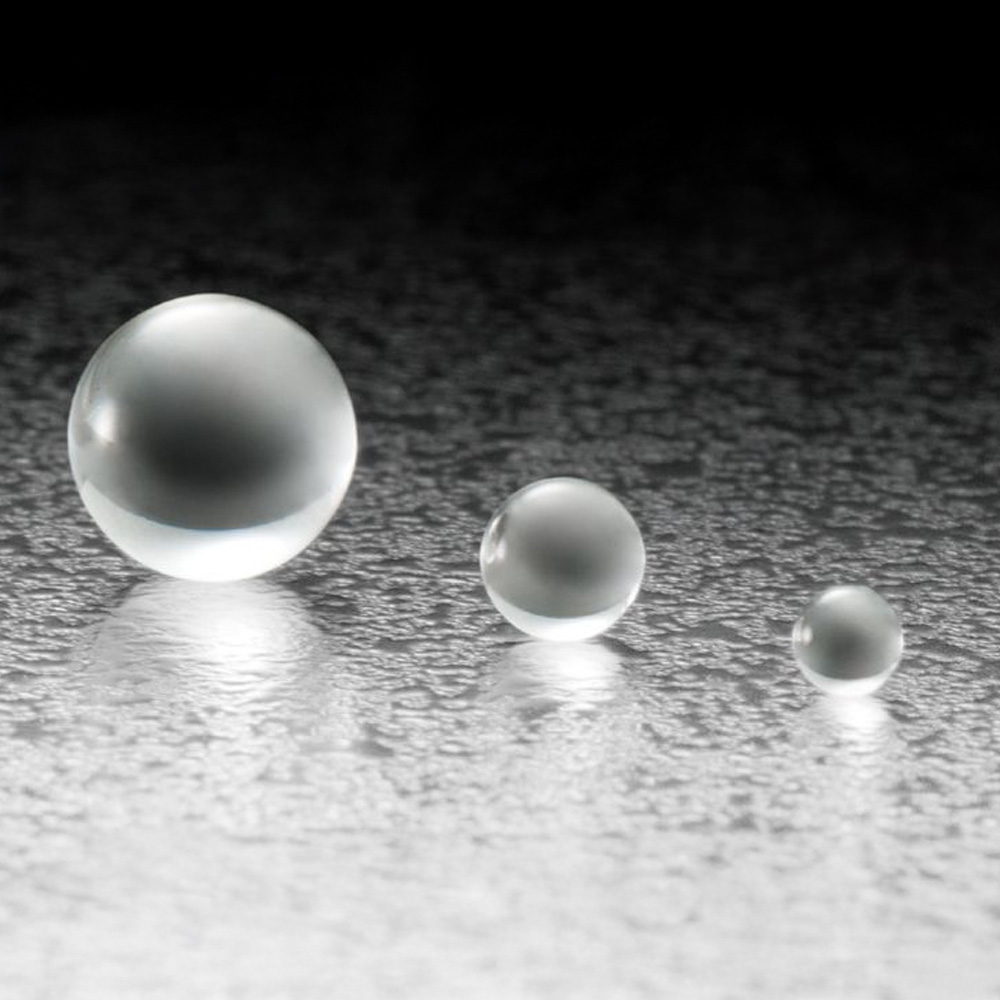

Microspheres offer a practical solution for channeling light into or out of optical fibers and transmitting images within confined spaces. These precision-engineered spherical particles provide near-perfect coupling due to the exceptionally close proximity of their focal point to the sphere’s surface, enabling seamless connection with optical fibers or other microspheres. Avantier manufactures custom microspheres tailored to meet the demanding requirements of fiber optic systems, biomedical imaging, and advanced photonics applications.
Factory Standard Specifications
| Parameter | Specification |
|---|---|
| Material | LaSF N9, grade A, fine annealed optical glass |
| Wavelength Range | 450 – 2300 nm, uncoated |
| Refractive Index | n830 = 1.83098, n1300 = 1.81764, n1550 = 1.81329 |
| Diameter Tolerance | ±1 µm |
| Spherical Tolerance | ≤ λ/4 @ 587.6 nm |
| Antireflection Coating | Single-layer MgF₂, R ≤ 0.25% at design wavelength |
Custom Microsphere Solutions
We pride ourselves on maintaining the highest standards in manufacturing precision optical components. Our microspheres are meticulously crafted using grade A fine annealed optical glass, ensuring exceptional optical quality and durability. Whether you require uncoated spheres for broadband applications or custom-coated solutions for specific wavelength optimization, Avantier has the expertise and capability to deliver.
With advanced metrology equipment and stringent quality control processes, we ensure that each microsphere meets or exceeds the specified tolerances. Our manufacturing capabilities extend beyond factory standard specifications to accommodate unique project requirements.
